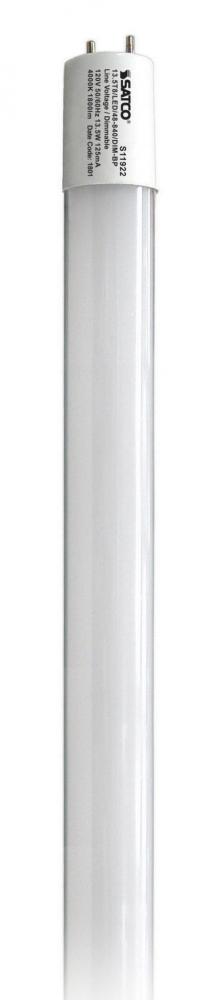

13.5 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Dimmable; Type (40J8VJ8)
13.5 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring
Product Specification
Item #
40J8VJ8
Dimensions
Width: 1.00"
Additional product details
Internal #
40J8VJ8
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
1601-2600
Kelvin
3501-4000
Category
LED
Sub-Category
LED T8
Volts
120V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
4000K
Bulb Shape
T8
Diameter
1
EA Length
48
Harmonized Codes
8539.52.0051
Length
48
Lumens
1800L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.5
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.45
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120V line voltage; No ballast or external driver required
Beam Spread
220
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0278
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimming Type
Reverse Phase or Phase Selectable
DLC Approved
Yes
DLC Classification
Standard
DLC ID
PLCHL8NP6U2O
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
133.33 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Cool white light
Feature 2
Damp rated for indoor use
Feature 3
Enclosed Rated Lamp
Feature 4
L:48.00 D:1.00
Feature 5
T8, Frosted Finish
Flourescent Equivalent
25W
Housing Color
White
Incandescent Equivalent
70W
Installation Notes
Not for use in vapor tight fixtures. Install only in non-shunted lampholders
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Lens Material
Glass
Location Rating
Damp
Long Description
SATCO NUVO's S11922 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, thi
Material
Glass
Nominal Length
48
NSF Approved
Yes
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's 13.5-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp
SDS class
LED_Lamp
Short Description
13.5T8/LED/48-840/DIM-BP
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Tube Guard Use
Yes
Wattage Selectable
No
Watts
13.5W
Other Details:
- Country of Origin- China
