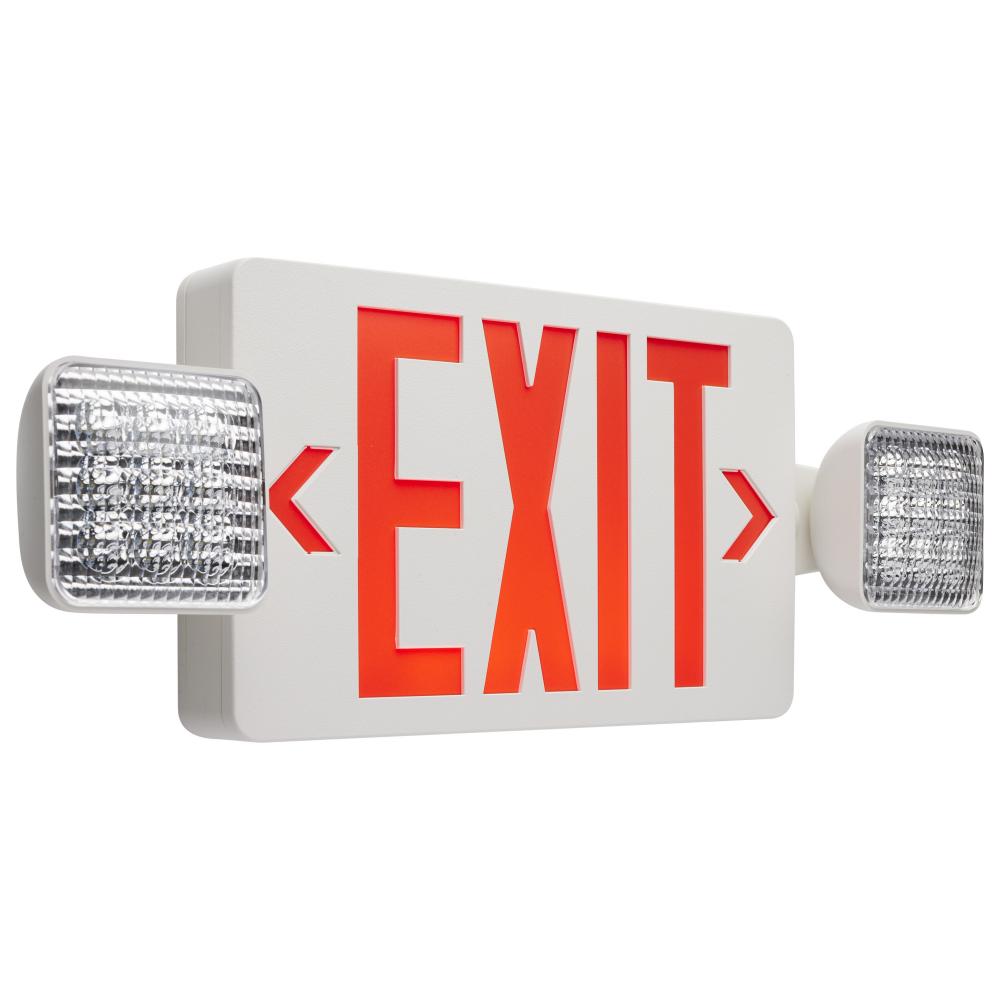

Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Dual Head, Single/Dual (40UTY6R)
Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Dual Head, Single/Dual Face, Universal Mounting
Product Specification
Item #
40UTY6R
Dimensions
Height: 7.25"
Width: 19.00"
Additional product details
Internal #
40UTY6R
Category
Utility
Subcategory
Exit Signs
Finish
White
Option
LED
, Prop 65
Category
Lighting Products
Sub Category
Exit & Emergency
Style
Utility
Additional Info
Input Wattage: 2.8W; Output Wattage: 1.5W; Energy Used in Maintenance Mode: 2.8W
Bulb Shape1
Integrated LED
Bulb Type1
LED
Dimmable
Non-Dimmable
Each Height
3.43
Each Length
15.98
Each Width
7.56
Lumens
150L
Tariff Code
9405.61.6000
Warranty
2 Year Limited
Amps
0.023/0.010A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
Ni-Cad
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
70
Depth
4
Each Cube
0.2398
Each Quantity
1
Efficacy
53.57 LPW
FCC Compliant
Yes
Feature 1
Red Lettering
Feature 2
Single or Dual Face
Feature 3
Knockout Chevron Directional Arrows
Feature 4
Two Adjustable Light Heads
Feature 5
5VA Flame Retardant ABS Housing
Feature 6
Ceiling or Wall Mounting Options
Feature 7
Damp Location
Feature 8
90 Minute Backup Run Time
Feature 9
2 Year Warranty
Finish Family
White
Has Emergency Battery
Yes
Incandescent Equivalent
25W
Includes
Mounting hardware and accessories
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Keep your building safe and secure with the SATCO|NUVO LED Exit and Emergency Light Combo 67-121. With single or double face options in red lettering, knockout chevron directional arrows and integrated emergency lights, this combo is customizable to fit yo
Material
Thermoplastic
Mounting Procedure
Ceiling/Wall
Operating Frequency
60Hz
Operating Temp
+10C (+50F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Keep your building safe and secure with the SATCO|NUVO LED Exit and Emergency Light Combo. With single or double face options in either red or green lettering, knockout chevron directional arrows and integrated emergency lights, this combo is customizable
Safety Listing
cULus - Certified;cULus - Listed
Short Description
EXIT/LIGHT DH - RED
Sloped Ceiling Compatible
No
Specification Notes
UL94V-0, Thermoplastic, 3.6V AA900mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.; Path of Egress: 6 Ft
Temperature (CCT)
5700K
Title 20 Compliant
Yes
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
2.99
