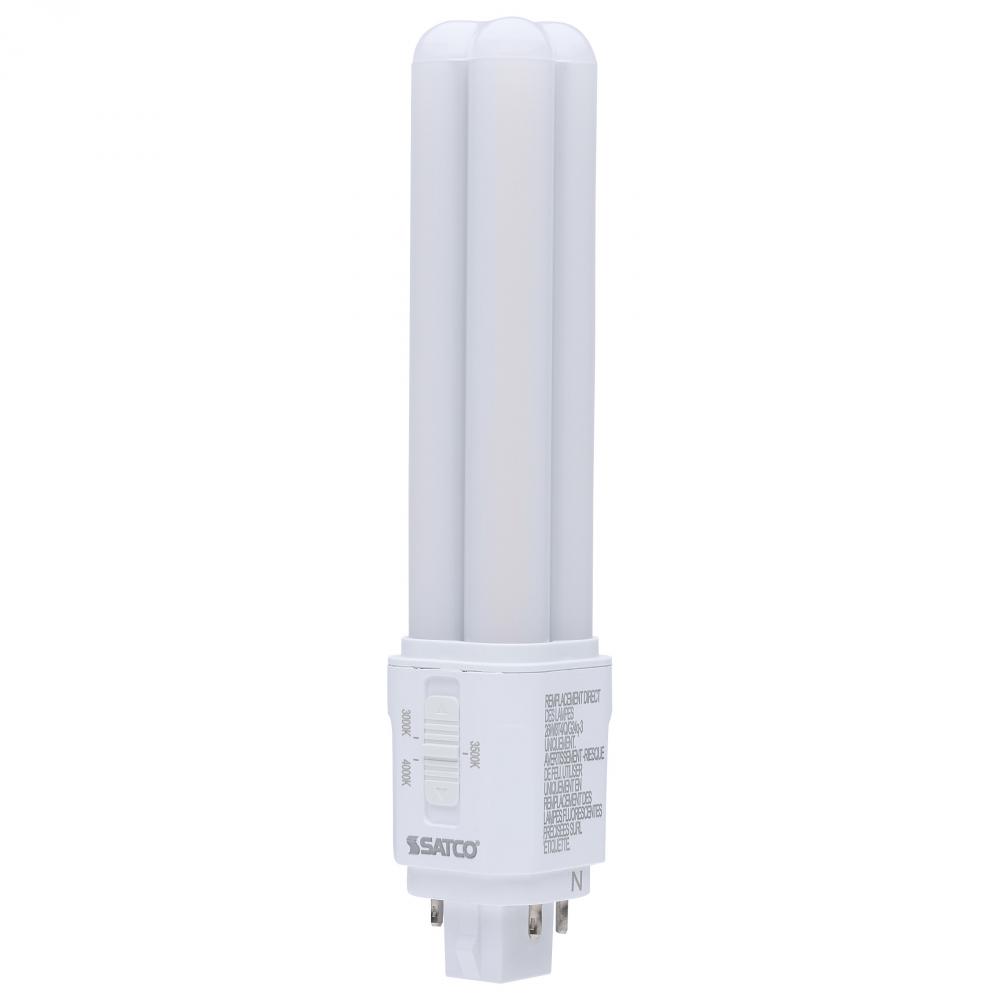

9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A/B; 120-277 Volt (40UWXYG)
9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A/B; 120-277 Volt
Product Specification
Item #
40UWXYG
Dimensions
Width: 1.40"
Additional product details
Internal #
40UWXYG
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
LED CFL Replacements Pin Based
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K
Bulb Shape
PL
Diameter
1.4
EA Length
1.46
Harmonized Codes
8539.52.0091
Length
6.9
Lumens
1100L/1150L/1200L
Shap Carton Width
1.46
Ship Carton Height
7.01
Ship Weight
0.26
Warranty
5 Year Limited - 10 hr per day
Weight
0.22
Ballast Bypass Direct
Dual
Ballasting Requirements
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread
360
Bulb ANSI Base
G24q
Bulb Base
G24q (4-Pin)
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0086
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 10 percent
Dimmable Function
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
Dimming Type
Triac
Efficacy
115.79/135.29/126.32 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
3 CCT Selectable
Feature 2
Type A/B Ballast Bypass
Feature 3
360 Degree Beam Spread
Feature 4
Suitable for Use in Enclosed Fixtures
Feature 5
G24q 4-Pin Base
Feature 6
Damp location rated
Feature 7
50,000 Hour Functional Life
Feature 8
5 Year Warranty
Flourescent Equivalent
18W/26W/32W
Housing Color
White
Indoor Outdoor
Indoor
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type A/B
Lamp Filament
LED
Location Rating
Damp
Long Description
SATCO NUVO's S29854 9.5-watt PL lamp offers a versatile replacement for traditional 18W, 26W, and 32W CFL lamps. Designed with a G24q (4-pin) base, it supports both Type A and Type B ballast bypass operation, making it ideal for retrofitting without re
Material
Aluminum / Plastic
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's innovative CFL replacement lamps provide an efficient solution for upgrading older 18W, 26W, or 32W CFL fixtures to the energy-saving advantages of LED technology. These lamps are compatible with three distinct ballast options, providing f
SDS class
LED_Lamp
Short Description
9.5W/LED/CFL/3CCT/DUAL/4P
Style
Transitional
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
No
Watts
9.5W
Other Details:
- Country of Origin- China
