40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; (40JCT9H)
40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1
Product Specification
Item #
40JCT9H
Dimensions
Width: 1.00"
Additional product details
Internal #
40JCT9H
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
3300+
Kelvin
6001-6500
Wattage
40w
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
6500K
Bulb Shape
T8
Diameter
1
EA Length
94
Harmonized Codes
8539.52.0051
Length
94
Lumens
5500L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.88
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.88
Additional Info
Suitable for Emergency Lighting only with Satco EM Driver #S8002
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
210
Bulb ANSI Base
Fa8
Bulb Base
Single Pin
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0544
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Daylight
Country Of Origin
China
CRI
80+
DLC Approved
Yes
DLC Classification
Standard
DLC ID
PLXALFHWUTHG
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
137.50 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 94.00 inches, MOD: 1.00 inch
Feature 2
Superior 82 CRI light quality, 5500 lumens, 6500K CCT with a 210 beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp rated, for indoor use only
Feature 5
40 watt LED replaces 59 watt fluorescent
Feature 6
White finished linear glass lamp
Feature 7
DLC Certified and qualifies for rebates where available
Feature 8
5 year limited warranty
Flourescent Equivalent
59W
Housing Color
White
Incandescent Equivalent
125W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended
Lamp Filament
LED
Lens Finish
White
Location Rating
Damp
Long Description

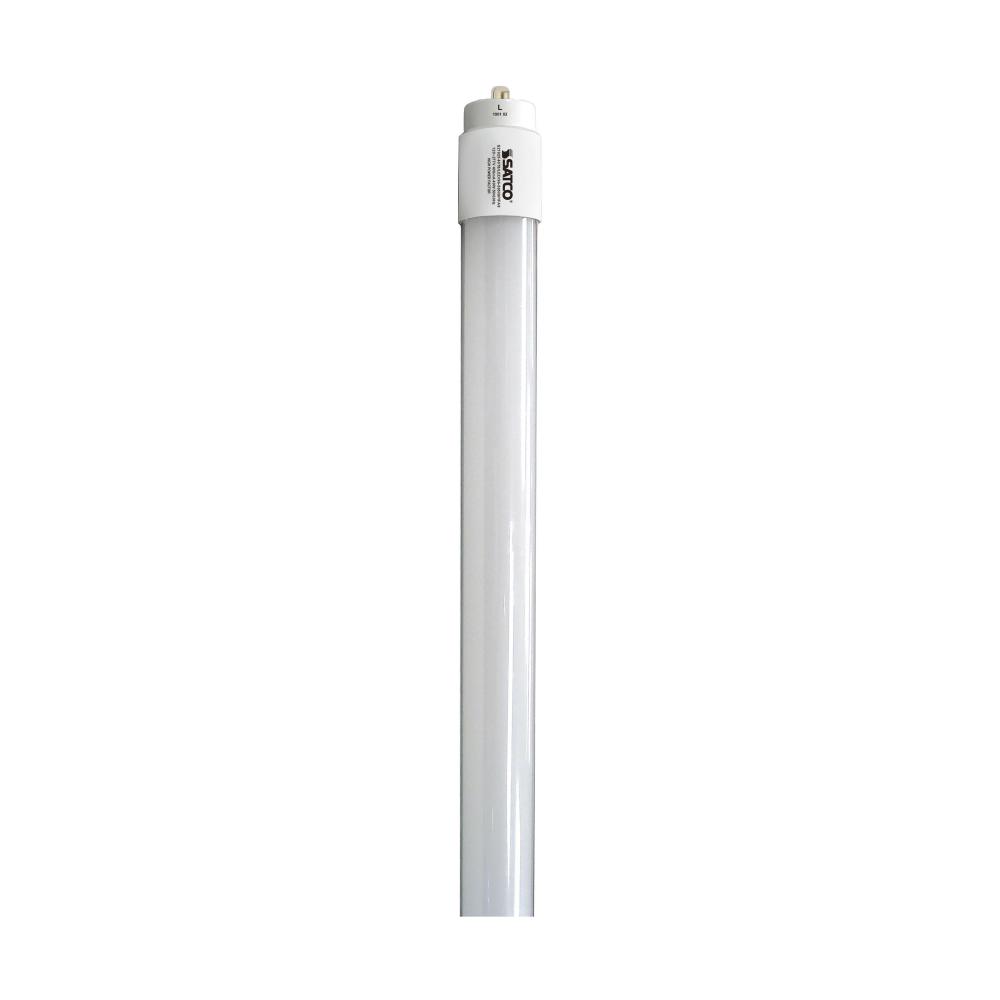

SATCO NUVO's S21925 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof prot
Material
Glass
Minimum Compartment Size
Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
Nominal Length
96
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
R9 Value
12
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection.
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
40T8/LED/96-865/BP/FA8
Style
Utility
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
40W
