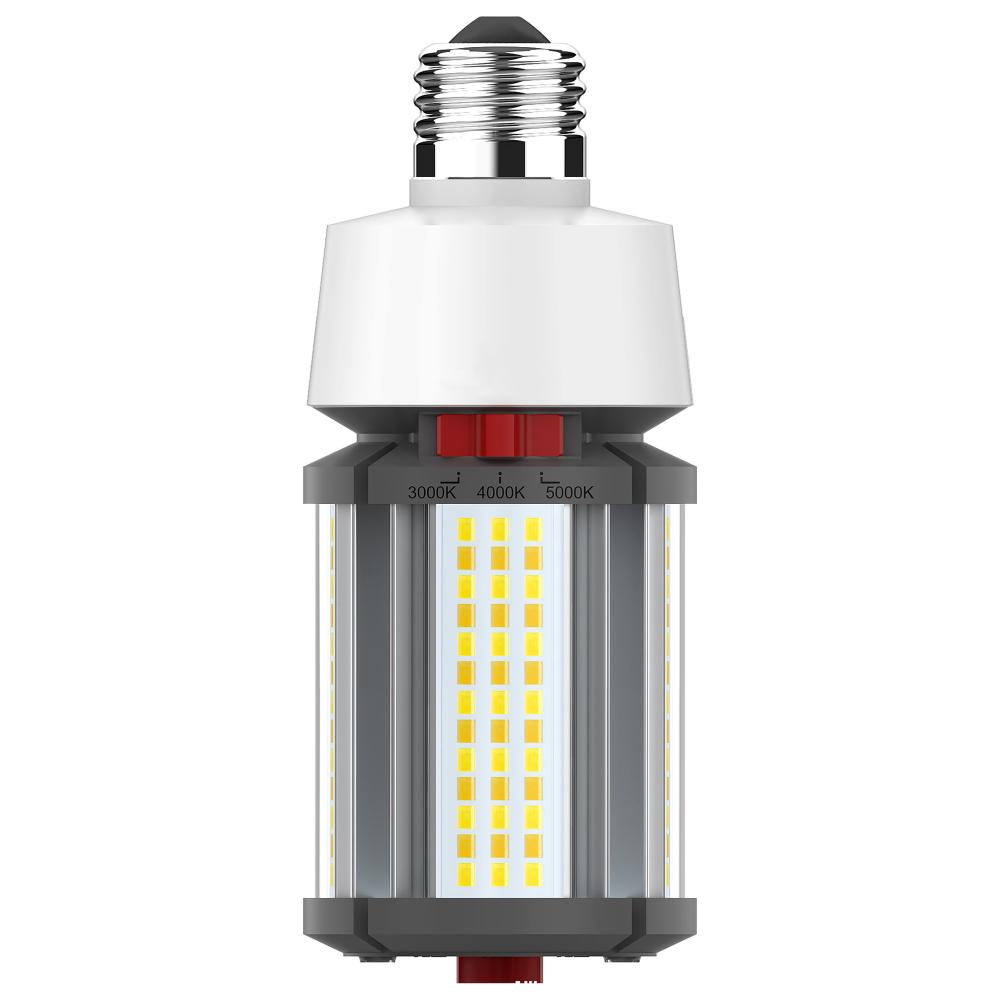

18/16/12 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium (40JCU90)
18/16/12 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Product Specification
Item #
40JCU90
Dimensions
Width: 2.32"
Additional product details
Internal #
40JCU90
Category
Light Bulbs
Subcategory
LED Bulbs
Style
Traditional
Lumens
1601-2600
Kelvin
3001-3500
Wattage
12w
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Corncob
Diameter
2.32
EA Length
2.83
Harmonized Codes
8539.52.0091
Length
6.29
Lumens
2520L/2240L/1680L
Shap Carton Width
2.83
Ship Carton Height
8.27
Ship Weight
0.7
Warranty
5 Year Limited - Hi-Pro
Weight
0.55
Additional Info
Power selectable
B.U. G. Rating
B1-U4-G2
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
300
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0383
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Non-Compliant - < 82 CRI
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80+
Dimmable Function
Only dimmable through wattage selection switch on lamp
Dimming Type
Step Dimming
DLC Approved
No
Efficacy
140.00/140.00/140.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Both
FCC Compliant
Yes
Feature 1
CCT Selectable-3000K, 4000K, 5000K
Feature 2
Wattage Selectable
Feature 3
Enclosed Fixture Rated
Feature 4
Advanced Thermal Management
Feature 5
Damp Location Rated
Feature 6
4KV Built in Surge Protection
Feature 7
Rated for 50,000 hours of use
HID Equivalent
75W/50W/40W
Housing Color
Dark Gray
Incandescent Equivalent
90W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Material
Plastic
Location Rating
Damp
Long Description
The newest generation of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more ve
Material
Plastic (PS)
NSF Approved
No
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +60C (+140F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
11
RoHS Compliant
Yes
Romance Copy
The newest generation of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more ve
SDS class
LED_Lamp
Short Description
18W/LED/CCT/100-277V/E26
Style
Contemporary
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
Yes
Watts
18W/16W/12W
Other Details:
- Country of Origin- China
