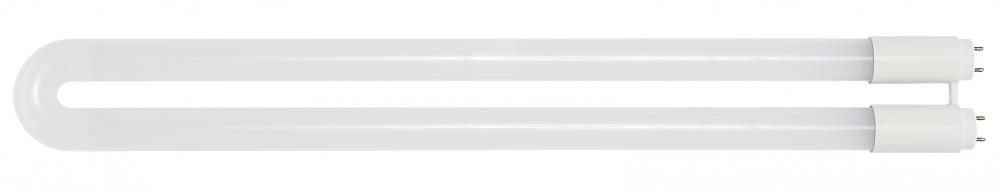

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1800 Lumens; 3000K; Type A/B; Ballast (40J8YFC)
13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1800 Lumens; 3000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Product Specification
Item #
40J8YFC
Dimensions
Width: 1.00"
Additional product details
Internal #
40J8YFC
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
1601-2600
Kelvin
2501-3000
Wattage
13w
Category
LED
Sub-Category
LED T8 U Bend
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
3000K
Bulb Shape
T8
Diameter
1
EA Length
23.2
Harmonized Codes
8539.52.0051
Length
22.59
Lumens
1800L
Shap Carton Width
2.8
Ship Carton Height
1.2
Ship Weight
0.55
Warranty
5 Year Limited - T8 LED Bulbs
Weight
0.5
Additional Info
Replaces FB31T8/U1
BAA Compliant
No
Ballast Bypass Direct
Dual
Ballasting Requirements
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread
160
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0451
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
80+
DLC Approved
Yes
DLC Classification
Standard; Standard
DLC ID
PL9V4YUGHT8B; PLU3DBV5TZQG
DLC Primary Use
Replacement Lamps (Plug and Play) (UL Type A); Dual Mode Internal Driver (UL Type A and Type B)
Efficacy
138.46 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 22.59 inches, MOD: 1.00 inch
Feature 2
Superior 80 CRI light quality, 1800 lumens, 3000K warm white light, with a 160 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
13 watt LED replaces 31 watt fluorescent
Feature 6
Frost finished U-bend plastic bulb with plastic housing
Feature 7
DLC Certified and qualifies for rebates where available
Feature 8
5 year limited warranty
Flourescent Equivalent
31W
Housing Color
White
Incandescent Equivalent
50W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type A/B
Lamp End Type
Single Ended;Double Ended
Lamp Filament
LED
Leg Spacing
1.625
Lens
Yes
Lens Finish
Frost
Lens Material
Plastic (PS)
Location Rating
Damp
Long Description
SATCO NUVO's S18450 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spa
Material
Plastic
Nominal Length
22.5
NSF Approved
ETL Sanitation listed (conforms to NSF)
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
1
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, th
SDS class
LED_Lamp
Shatter Proof Text
Yes
Short Description
13T8/U1-G13/LED/830/DUAL
Style
Utility
Surge Protection
Built-in-surge protection - 0.7KV
Technology
LED
Title 20 Compliant
Exempt
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
13W
Other Details:
- Country of Origin- China
