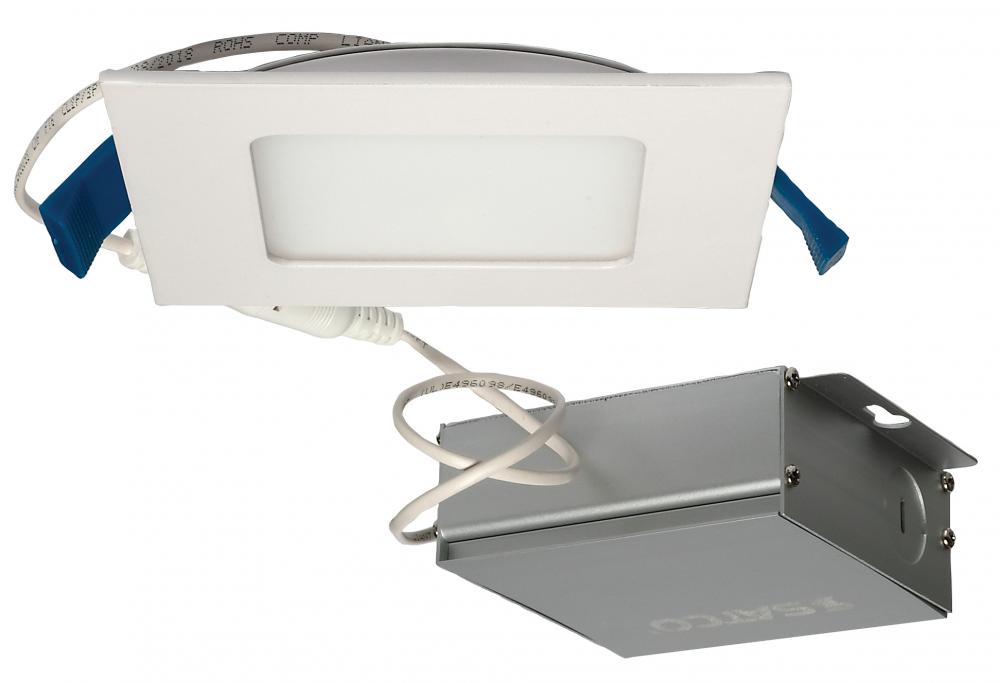

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote (40JR4T4)
10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote Driver
Product Specification
Item #
40JR4T4
Dimensions
Height: 0.94"
Width: 4.75"
Additional product details
Internal #
40JR4T4
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Additional Info
Integrated j-box for direct wire installation
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Dimmable
Yes-Dimmable
Each Height
5.39
Each Length
6.65
Each Width
2.13
Length
4.75
Lumens
620L
Tariff Code
9405.11.8010
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.083A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
108
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.125 in. Cutout
Clearance Height
2
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0442
Each Quantity
1
Efficacy
62.00 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Square
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Material
Aluminum
Max Drywall Thickness
5/8 in.
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
10WLED/DW/EL/4/940/SQ/RD
Sloped Ceiling Compatible
No
Temperature (CCT)
4000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.82
Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
0
00
/
/ 1
($0.00 / 1)
Save To Compare
Availability:
- Manufacturer availability unknown.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
